Home / Product Category / By Engine / Generator Powered by Weichai Engine / generator set by weichai engine:14kw-3000kw
generator set by weichai engine:14kw-3000kw
generator set by weichai engine:14kw-3000kw generator set by weichai engine:14kw-3000kw

loading

generator set by weichai engine:14kw-3000kw

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Adopting Weichai engines, featuring prompt and reliable cold starting performance;
  • Designed with advanced technology, resulting in optimal combustion, low fuel consumption, less noise, as well as compliance with German TALuft emission standard;
  • Rational performance matching design leads to high stability and reliability of the power generation system;
Availability:
Quantity:
Inquire Add to Basket
Product Description

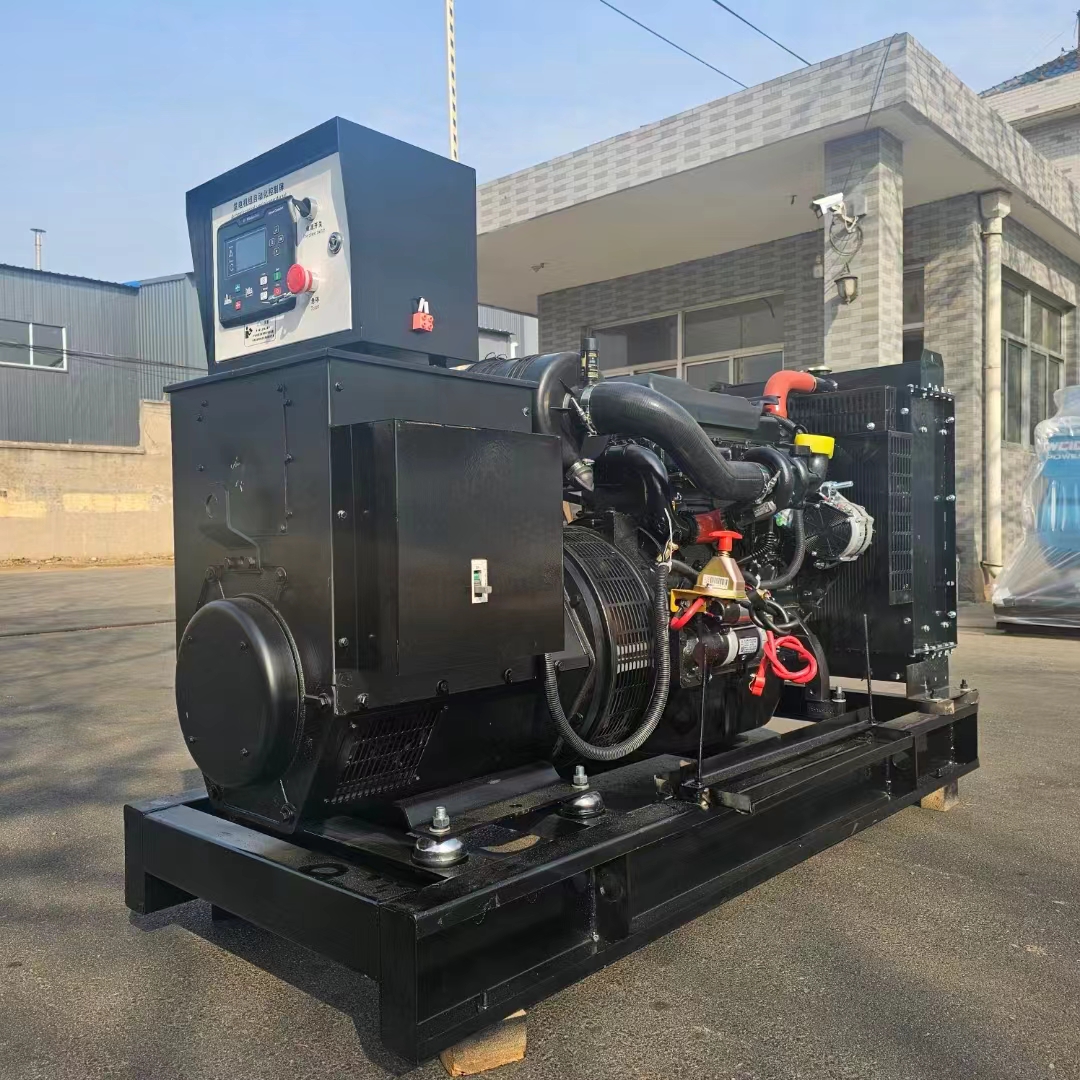

微信图片_20240427181843

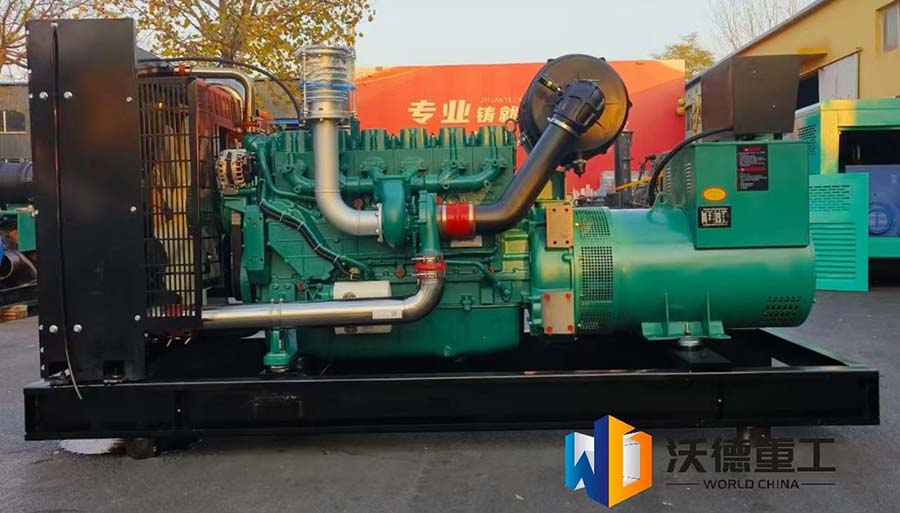

微信图片_20240204104334

50HZ

Model Power(kw) Power(kva) Engine Model Engine Power(kw) Size(mm)
Main Reserve Main Reserve Main Reserve
WD-14GF 14 16 17.5 20 WP3.2D20E310 18 20 1600*800*1250
WD-16GF 16 18 20 22.5 WP3.2D28E310 25 27.5 1800*800*1350
WD-20GF 20 22 25 27.5 WP2.3D25E200 23 25 1650*600*1150
WD-24GF 24 30 30 37.5 WP3.2D36E310 33 36 1800*800*1350
WD-26GF 26 28 32.5 35 WP2.3D33E200 30 33 1650*600*1150
WD-30GF 30 33 37.5 41.25 WP2.3D40E200 36 40 1800*750*1200
WD-30GF 30 33 37.5 41.25 WP3.2D44E310 36.8 44 1800*800*1350
WD-36GF 36 40 46 50 WP2.3D48E200 44 48 1800*750*1200
WD-50GF 50 55 62.5 68.75 WP4D66E200 60 66 1950×950×1400
WD-50GF 50 55 62.5 68.75 WP4.1D66E200 60 66 1850*750*1200
WD-50GF 50 55 62.5 68.75 WP4D66E310 60 66 2200×960×1500
WD-50GF 50 55 62.5 68.75 WP2.3ND66E310 60 66 1850*800*1300
WD-64GF 64 70 80 87.5 WP4.1D80E200 72 80 2150*850*1350
WD-65GF 65 72 81.25 90 WP3ND82E310 74.5 82 1850*800*1350
WD-80GF 80 88 100 110 WP4.1D100E310 / 105 1800*800*1400
WD-80GF 80 88 100 110 WP4D108E200 98 108 2200×950×1500
WD-80GF 80 88 100 110 WP4D100E200 90 100 2200×950×1500
WD-80GF 80 88 100 110 WP4.1D100E200 88 100 2150*850*1350
WD-80GF 80 88 100 110 WP4D100E310 90 100 2200×960×1500
WD-90GF 90 100 112.5 125 WP4.6ND120E310 100 120 2100*900*1550
WD-110GF 110 120 137.5 150 WP6D132E200 120 132 2470*900*1370
WD-110GF 110 120 137.5 150 WP6D132E310 120 132 2400×960×1500
WD-110GF 110 120 137.5 150 WP4.6ND138E310 125 138 2300*900*1560
WD-120GF 120 132 150 165 WP6D152E200 138 152 2470*900*1370
WD-120GF 120 132 150 165 WP6D152E310 138 152 2500*900*1600
WD-120GF 120 132 150 165 WP4.6ND148E310 135 148 2400*900*1560
WD-135GF 135 150 168.75 187.5 WP6D167E200 150 167 2470*900*1370
WD-150GF 150 160 187.5 200 WP7D185E310 168 185 2500*900*1600
WD-160GF 160 170 200 220 WP10D200E200 182 200 2750*1050*1450
WD-170GF 170 187 212.5 233.75 WP7D216E310 196 216 2800×1080×1800
WD-180GF 180 200 225 250 WP10D238E200 216 238 2858*1100*1450
WD-180GF 180 200 225 250 WP7D240E310 218 240 2500*900*1600
WD-200GF 200 220 250 275 WP10D264E200 240 264 2900*1100*1500
WD-200GF 200 220 250 275 WP10D264E350 240 264 2900*900*1720
WD-200GF 200 220 250 275 WP7D264E310 235 264 2900*900*1720
WD-230GF 230 250 287.5 312.5 WP10D288E350 262 288 2900×1200×1800
WD-250GF 250 275 312.5 343.75 WP12D317E200 288 317 2900*1100*1500
WD-250GF 250 280 312.5 350 WP10D320E350 290 320 2900*900*1720
WD-250GF 250 280 312.5 350 WP10D320E200
320 3050*1150*1550
WD-300GF 300 330 375 412.5 WP13D385E200 350 385 3050*1150*1600
WD-300GF 300 320 375 400 WP13D385E310 350 385 3200*1000*1750
WD-320GF 320 350 400 437.5 WP13D405E200
405 3350*1200*1600
WD-330GF 330 360 412.5 450 WP13D440E310 392 440 3500*1500*1900
WD-400GF 400 440 500 550 6M26D484E200 440 484 3500*1500*1800
WD-400GF 400 440 500 550 WP13D490E310 450 490 3500*1500*1900
WD-460GF 460 520 575 650 6M33D572E200 520 572 3650*1600*2000
WD-500GF 500 550 715 791 6M33D633E310 572 633 3700×1600×1900
WD-520GF 520 580 650 725 6M33D633E200 575 633 3700*1600*2080
WD-520GF 520 580 650 725 6M33D633E310 575 633 3700*1600*1900
WD-540GF 540 600 675 750 6M33D670E200
670 3700*1600*2080
WD-600GF 600 650 750 812.5 6M33D725E310 / 725 3900*1800*2100
WD-640GF 640 704 800 880 8M33D800E200 730 800 4300*1800*2400
WD-640GF 640 700 800 875 12M26D792E200 720 792 4500*1800*2400
WD-720GF 720 800 900 1000 12M26D902E200 820 902 4500*1850*2200
WD-720GF 720 800 900 1000 12M33D902E310 820 902 4500*1850*2200
WD-800GF 800 880 1000 1100 12M26D968E200 880 968 4600*1850*2350
WD-800GF 800 900 1000 1125 12M33D968E310 880 968 4600*1850*2250
WD-900GF 900 1000 1125 1250 12M33D1108E200 1007 1108 4800*2000*2350
WD-900GF 900 1000 1125 1250 12M33D1108E310 1007 1108 4800*2000*2350
WD-1000GF 1000 1100 1250 1375 12M33D1210E200 1100 1210 4800*2050*2450
WD-1000GF 1000 1100 1250 1375 12M33D1240E310 1130 1240 4800*2050*2450
WD-1100GF 1100 1200 1375 1500 12M33D1320E200
1320 5400*2100*2500
WD-1100GF 1100 1200 1375 1500 12M33D1320E310 1200 1320 4900*2100*2550
WD-1200GF 1200 1320 1500 1650 12M33D1450E310 1350 1450 5000*2100*2600
WD-1200GF 1200 1360 1500 1700 16M33D1530E310 1390 1530 7200*2150*2340
WD-1300GF 1300 1440 1625 1800 16M33D1580E310 1430 1580 7200*2150*2340
WD-1400GF 1400 1520 1750 1900 16M33D1680E310 1530 1680 7200*2150*2340
WD-1500GF 1500 1650 1875 2062.5 16M33D1800E310 1680 1800 7200*2150*2340
WD-1600GF 1600 1800 2000 2250 20M33D2020E310 1850 2020 7000*2200*2450
WD-1600GF 1600 1800 2000 2250 16M33D1980E310 1800 1980 7200*2150*2340
WD-1800GF 1800 2000 2250 2500 20M33D2210E310 2010 2210 7000*2200*2450
WD-1800GF 1800 2000 2250 2500 12M55D2210E310 1989 2210 6620*2210*2500
WD-2000GF 2000 2200 2500 2750 12M55D2450E310 2200 2450 6620*2210*2500
WD-2200GF 2200 2400 2750 3000 16M55D2750E310 2500 2750 8200×2800×3700
WD-2200GF 2200 2400 2750 3000 12M55D2700E310 2420 2700 6620*2210*2500
WD-2400GF 2400 2650 3000 3312.5 16M55D2900E310 2646 2900 8200×2800×3700
WD-2600GF 2600 3000 3250 3750 16M55D3300E310 2900 3300 8200×2800×3700
WD-3000GF 3000 3300 3750 4125 16M55D3600E310 3000 3600 8200×2800×3700
WD-300GF
330 300 375 WP12D353E200
353 3050*1150*1600
WD-800GF
800
1000 8M33D890E200 890 890 400*1700*2100

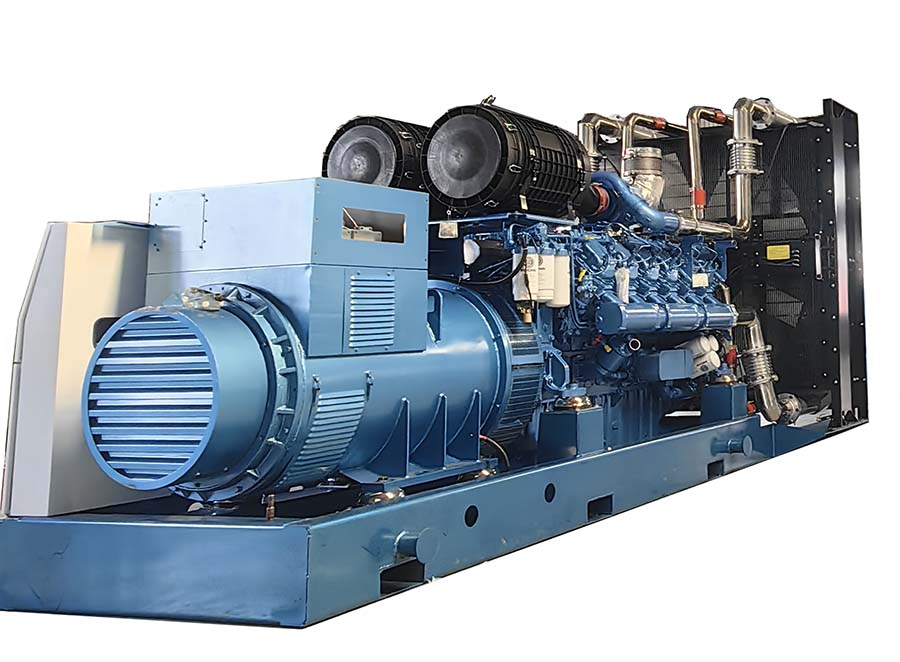

微信图片_20240427181846

60HZ

Model Power(kw) Power(kva) Engine Model Engine Power(kw) Size(mm)
Main Reserve Main Reserve Main Reserve
WD-20GF 20 22 25 27.5 WP2.3D30E201 23 25 1650*600*1150
WD-26GF 26 28 32.5 35 WP2.3D41E201 30 33 1650*600*1150
WD-30GF 30 33 37.5 41.25 WP2.3D47E201 36 40 1800*750*1200
WD-36GF 36 40 45 50 WP2.3D58E201 44 48 1800*750*1200
WD-50GF 50 55 62.5 68.75 WP4.1D80E201 60 66 1850*750*1200
WD-64GF 64 70 80 87.5 WP4.1D95E201 72 80 2150*850*1350
WD-80GF 80 88 100 110 WP4D100E201 90 100 2200×950×1500
WD-80GF 80 88 100 110 WP4.1D115E201 88 100 2150*850*1350
WD-110GF 110 120 137.5 150 WP6D132E201 120 132 2470*900*1370
WD-120GF 120 132 150 165 WP6D158E201 138 152 2470*900*1370
WD-135GF 135 150 168.75 187.5 WP6D180E201 150 167 2470*900*1370
WD-160GF 160 176 200 220 WP10D200E201 182 200 2750*1050*1450
WD-180GF 180 200 225 250 WP10D238E201 216 238 2858*1100*1450
WD-200GF 200 220 250 275 WP10D264E201 240 264 2900*1100*1500
WD-250GF 250 275 312.5 343.75 WP10D360E201
320 3050*1150*1550
WD-300GF 300 330
375 WP12D317E201 353 353 3050*1150*1600
WD-300GF 300 330 375 412.5 WP13D385E201 350 385 3050*1150*1600
WD-320GF 320 350 400 437.5 WP13D448E201
405 3350*1200*1600
WD-460GF 460 520 575 650 6M33D572E201 520 572 3650*1600*2000
WD-520GF 520 580 650 725 6M33D670E201 575 633 3700*1600*2080
WD-540GF 540 600 675 750 6M33D710E201
670 3700*1600*2080
WD-640GF 640 704 800 880 8M33D845E201 730 800 4500*1800*2400
WD-640GF 640 700 800 875 12M26D902E201 720 792 4500*1800*2400
WD-720 720 800 900 1000 12M26D1012E201 820 902 4500*1850*2200
WD-900GF 900 1000 1125 1250 12M33D1265E201 1007 1108 4800*2000*2350
WD-1000GF 1000 1100 1250 1375 12M33D1320E201 1100 1210 4800*2050*2450
WD-1100GF 1100 1200 1200 1300 12M33D1420E201 1375 11500 5400*2100*2500
WD-800GF
800
1000 8M33D945E201
890 4000*1700*2100
