Generator Set by Shangchai Engine：8kva-1000kva
Generator Set by Shangchai Engine：8kva-1000kva Generator Set by Shangchai Engine：8kva-1000kva

loading

Generator Set by Shangchai Engine：8kva-1000kva

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Adopting Shangchai engines, featuring prompt and reliable cold starting performance;
  • Designed with advanced technology, resulting in optimal combustion, low fuel consumption, less noise, as well as compliance with German TALuft emission standard;
  • Rational performance matching design leads to high stability and reliability of the power generation system;
Availability:
Quantity:
Inquire Add to Basket
Product Description

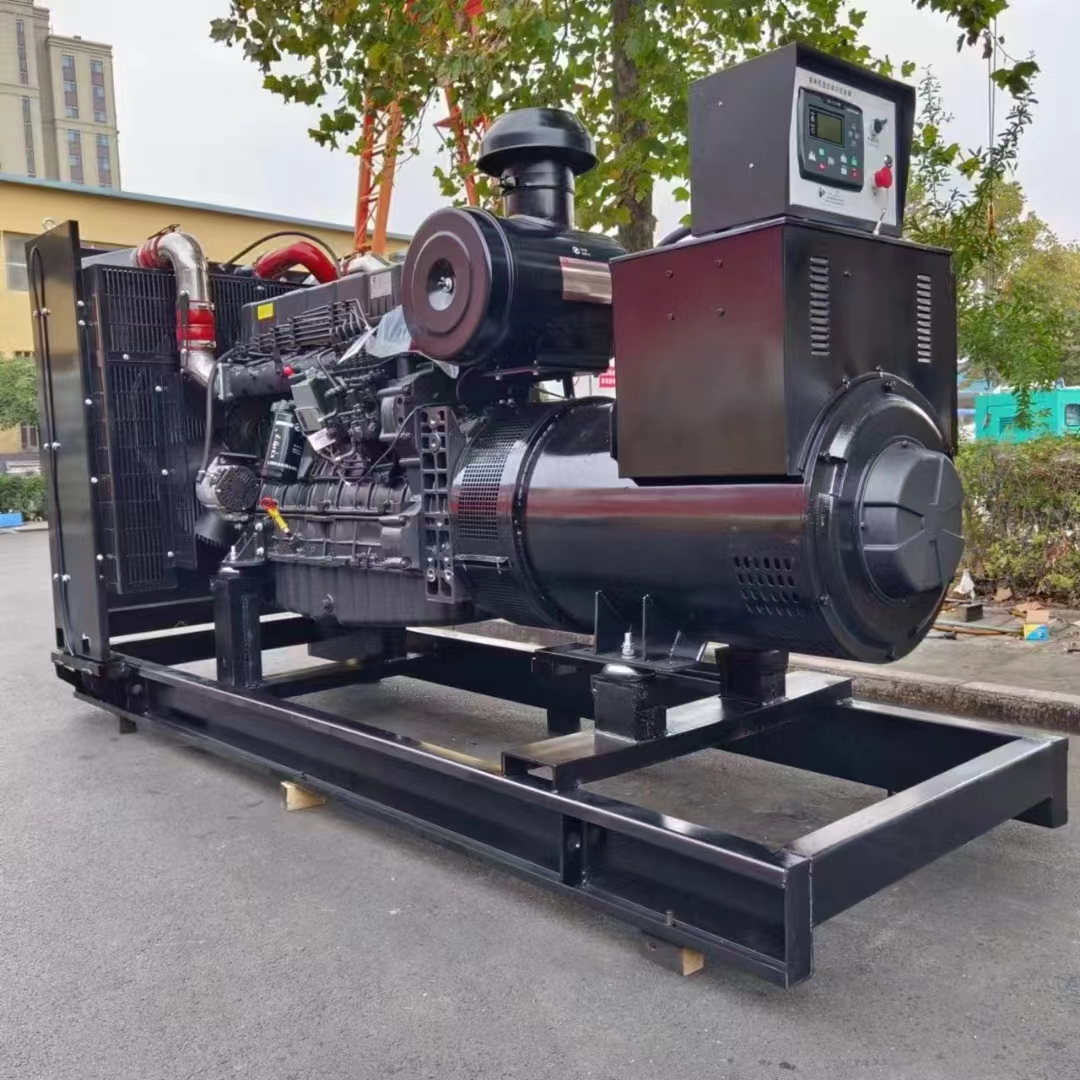

微信图片_20240204103611

50HZ

Model Power(kw) Power(kva) Engine Model Engine Power(kw) Size(mm)
Main Reserve Main Reserve Main Reserve
WD-8GF 8 8.8 10 11 3Z1.1-G42 10 11 1400*500*950
WD-12GF 12 13.2 15 16.5 4Z2.3-G21 16 18 1450*500*1000
WD-12GF 12 13.2 15 16.5 4Z2.3-G11 16 18 1450*500*1000
WD-16GF 16 18 20 22.5 4Z2.7-G21 22 24 1450*500*1000
WD-16GF 16 18 20 22.5 4Z2.7-G11 22 24 1450*500*1000
WD-20GF 20 22 25 27.5 4Z3.0-G21 27 30 1450*500*1000
WD-20GF 20 22 25 27.5 4Z3.0-G11 27 30 1450*500*1000
WD-25GF 25 27.5 31.3 34.4 4Z3.2-G11 32 35 1450*500*1000
WD-32GF 32 35 40 43.8 4ZT3.2-G21 39 44 1500*550*1000
WD-32GF 32 35 40.0 43.8 4ZT3.2-G11 39 44 1500*550*1000
WD-32GF 32 35 40.0 43.8 4Z3.2-G21 39 44 1500*550*1000
WD-40GF 40 44 50 55 4ZT3.5-G21 49 54 1500*550*1000
WD-45GF 45 50 56.25 62.5 4HTAA4.3-G31 51 56 1800*730*1300
WD-50GF 50 55 62.5 68.75 SC4H95D2 62 68 1900*800*1200
WD-50GF 50 55 62.5 68.8 4ZT4.1-G21 60 66 1500*550*1000
WD-50GF 50 55 62.5 68.75 4HTAA4.3-G32 62 68 1800*730*1300
WD-55GF 55 60 68.8 75.0 4ZTAA4.1-G21 64 70 1500*550*1000
WD-70GF 70 77 87.5 96.25 4HTAA4.3-G33 78 86 1900*800*1300
WD-80GF 80 90 100 112.5 SC4H140D2 95 105 1900*860*1200
WD-80GF 80 90 100 112.5 4HTAA4.3-G34 95 105 2000*800*1300
WD-90GF 90 100 112.5 125 SC4H160D2 105 116 2060*900*1200
WD-90GF 90 100 112.5 125 4HTAA4.3-G35 106 117 2100*850*1300
WD-100GF 100 110 125 137.5 SC4H180D2 120 132 2100*900*1200
WD-100GF 100 110 125 137.5 SC7H180D2 120 132 2100*900*1200
WD-110GF 110 120 137.5 150 6HTAA6.5-G31 128 141 2300*850*1300
WD-110GF 110 120 137.5 150 4HTAA4.3-G36 125 140 2100*850*1300
WD-120GF 120 132 150 165 SC7H205D2 138 152 2400*950*1450
WD-120GF 120 132 150 165 6HTAA6.5-G32 140 155 2300*850*1300
WD-130GF 130 145 162.5 181.25 SC7H220D2 150 165 2400*950*1450
WD-135GF 135 150 168.75 187.5 SC7H230D2 154 170 2400*950*1450
WD-140GF 140 154 175 192.5 6HTAA6.5-G35 155 170 2300*850*1300
WD-150GF 150 165 187.5 206.25 SC7H250D2 168 185 2600*950*1500
WD-150GF 150 165 187.5 206.25 6HTAA6.5-G33 168 185 2300*850*1300
WD-160GF 160 180 200 225 SC8D280D2 185 204 2600*1050*1500
WD-160GF 160 180 200 225 6DTAA8.9-G31 185 204 2500*890*1400
WD-160GF 160 180 200 225 6HTAA6.5-G34 186 205 2500*890*1400
WD-180GF 180 200 225 250 SC9D310D2 208 228 2600*1050*1500
WD-180GF 180 200 225 250 6DTAA8.9-G32 208 228 2500*890*1400
WD-200GF 200 220 250 275 SC9D340D2 228 255 3000*1150*1650
WD-200GF 200 220 250 275 6DTAA8.9-G33 230 253 2500*890*1400
WD-220GF 220 250 275 312.5 SC10E380D2 255 280 3065*1105*1626
WD-220GF 220 250 275 312.5 6DTAA8.9-G34 255 280 2600*1090*1500
WD-250GF 250 280 312.5 350 SC13G420D2 280 308 3100*1150*1650
WD-250GF 250 280 312.5 350 SC12E420D2 280 308 3100*1150*1650
WD-250GF 250 280 312.5 350 6ETAA11.8-G32 280 308 3000*1250*1800
WD-270GF 270 300 337.5 375 6ETAA11.8-G33 307 338 3000*1250*1800
WD-280GF 280 300 350 375 SC12E460D2 307 338 3100*1150*1650
WD-290GF 290 320 362.5 400 SC12E480D2 323 355 3100*1250*1650
WD-300GF 300 330 375 412.5 SC13E500D2 339 373 3100*1250*1650
WD-300GF 300 330 375 412.5 SC15G500D2 330 373 3100*1250*1650
WD-300GF 300 330 375 412.5 6ETAA11.8-G31 340 380 3000*1250*1800
WD-320GF 320 360 400 450 SC13E550D2 368 405 3100*1250*1650
WD-320GF 320 350 400 437.5 6ETAA12.8-G32 360 400 3100*1250*1850
WD-360GF 360 400 450 500 SC25G610D2 405 445.5 3100*1250*1650
WD-360GF 360 400 450 500 6ETAA12.8-G31 401 441 3100*1250*1850
WD-400GF 400 450 500 562.5 SC25G690D2 459 505 3500*1500*1950
WD-400GF 400 440 500 550 6KTAA25-G311 460 506 3800*1600*2150
WD-400GF 400 440 500 550 6KTAA25-G36 460 506 3800*1600*2150
WD-400GF 400 440 500 550 12GTAA27-G34 459 505 3550×1500×1950
WD-450GF 450 500 562.5 625 SC27G755D2 505 560 3500*1500*2000
WD-450GF 450 500 562.5 625 6KTAA25-G310 520 572 3800*1600*2150
WD-450GF 450 500 562.5 625 6KTAA25-G35 520 572 3800*1600*2150
WD-450GF 450 500 562.5 625 12GTAA27-G33 505 555 3550×1500×1950
WD-500GF 500 550 625 687.5 SC27G830D2 561 610 3650*1500*2000
WD-500GF 500 550 625 687.5 12GTAA27-G32 565 610 3550×1500×1950
WD-500GF 500 550 625 687.5 6KTAA25-G34 572 629 3800*1600*2150
WD-500GF 500 550 625 687.5 6KTAA25-G39 572 629 3800*1600*2150
WD-550GF 550 600 687.5 750 SC27G900D2 602 662 3700*1500*2150
WD-550GF 550 600 687.5 750 6KTAA25-G33 622 684 3800*1750*1900
WD-550GF 550 600 687.5 750 6KTAA25-G38 622 684 3800*1600*2150
WD-550GF 550 600 687.5 750 12GTAA27-G31 622 684 3550×1500×1950
WD-600GF 600 660 750 825 SC33W990D2 660 726 4400*1700*2150
WD-600GF 600 660 750 825 6KTAA25-G32 685 754 3900*1800*1950
WD-640GF 640 710 800 887.5 6KTAA25-G31 728 800 3950*1850*2000
WD-700GF 700 780 875 975 SC33W1150D2 782 860 4500*1800*2350
WD-720GF 720 800 900 1000 6WTAA35-G32 818 900 4400*1800*2400
WD-800GF 800 880 1000 1100 6WTAA35-G31 882 970 4400*1800*2400
WD-900GF 900 990 1125 1237.5 6WTAA35-G310 1018 1120 4600*1800*2400
WD-1000GF 1000 1100 1250 1375 6WTAA35-G311 1118 1230 4600*1800*2400

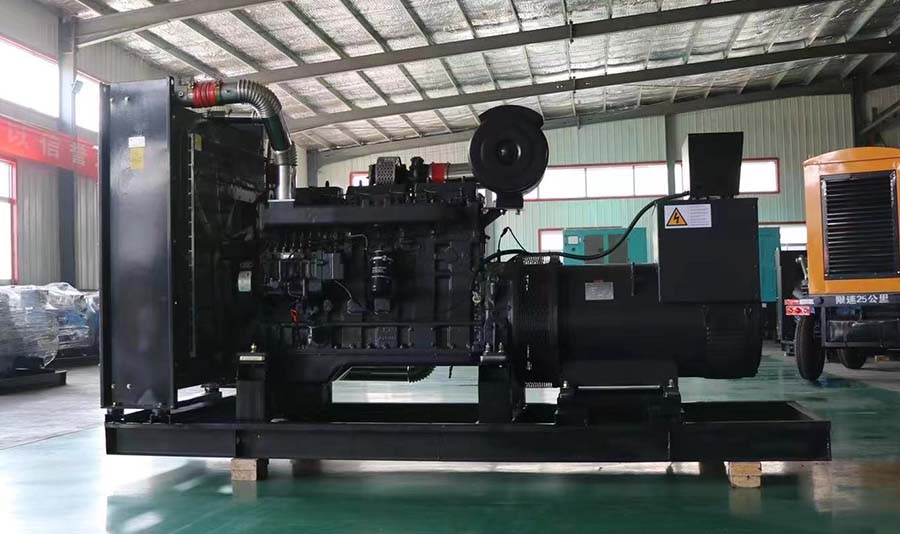

微信图片_20240427182729


60HZ

Model Power(kw) Power(kva) Engine Model Engine Power(kw) Size(mm)
Main Reserve Main Reserve Main Reserve
WD-16GF 16 18 20 22.5 4Z2.3-G12 21 23 1450*500*1000
WD-20GF 20 22 25 27.5 4Z2.7-G12 26 29 1450*500*1000
WD-25GF 25 27.5 31.3 34.4 4Z3.2-G12 38 42 1450*500*1000
WD-25GF 25 27.5 31.3 34.4 4Z3.0-G12 30 33 1450*500*1000
WD-32GF 32 35 40 43.8 4ZT3.2-G12 42 46 1500*550*1000
